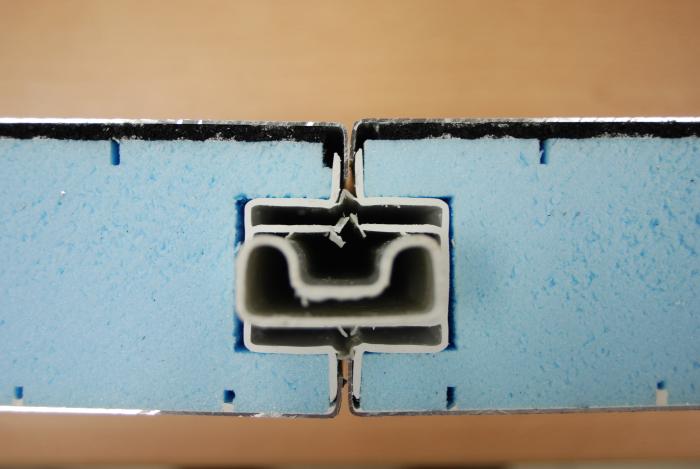

The ALUMINUIM SELF-SUPPORTING PANELS are composed of aluminium facings with an insulating foam in extruded polystyrene which are joined together by a PVC junction key, with 2 double draining channels of flow and 7 water-resistive barriers.
This allows for a continuous thickness of insulation across whole roof which is completely watertight, and no visible roof structure can be seen. This is an ideal replacement for lean to conservatories providing excellent thermal and acoustic insulation.
Technical Specifications
Covering
External and internal facing aluminium sheet (thickness 8/10th)
Sizes
Panels size 1215mm wide. 3m – 4.5m lengths available
Thermal Loss
U = K = 0,49 (55) 0,45 (60) - 0,41 (66) - 0,32 (85) 0,26 (105) W / K.m²
Insulating Core
Extruded polystyrene, λ = 0.028, without CFC
Thickness
Overall panel thickness range from 55mm – 105mm
Colours
Available in RAL colours 9010 white
Acoustic Layer
Anti-vibration elastomeric mass to reduce noise
Thermal Resistance
R= 2 (55) - 2,18 (60) 2,39 (66) - 3,11 (85) - 3,79 (105) K.m² / W
